RNAscope, Rat Heart

Presented in 2012, the RNAscope is one of the more recent RNA in situ hybridization techniques that allows visualization of multiple target genes. RNAscope uses a probe design strategy that amplifies the signal and suppresses the background, which results in increased sensitivity and specificity, see [1].

The protocol automatically detects and quantifies probes for a wide range of genes: ANGPT2, EGLN3, GLP1R, HIF1A, PECAM1, SLC2A1 and dapB. Each cell is classified as 0, 1+, 2+, 3+, or 4+ based on the number of probes it contains as recommended by ACD.

RUO

Figure 1

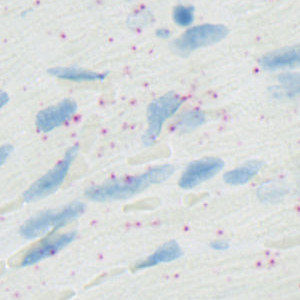

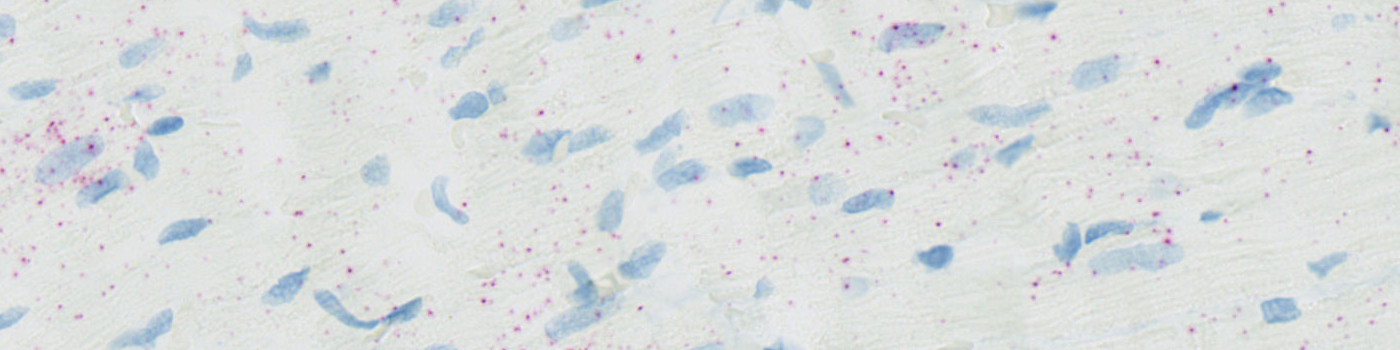

Field-of-view from the left ventricle of a rat heart stained for EGLN3.

Figure 2

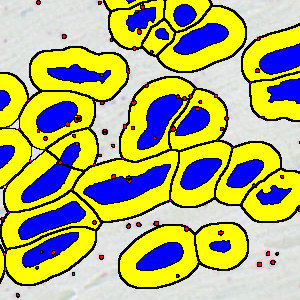

Identified nuclei (blue) and simulation of cytoplasm (yellow).

Figure 3

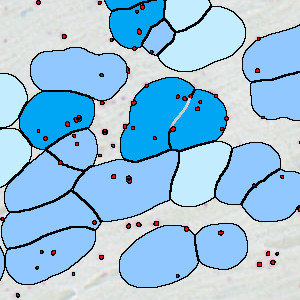

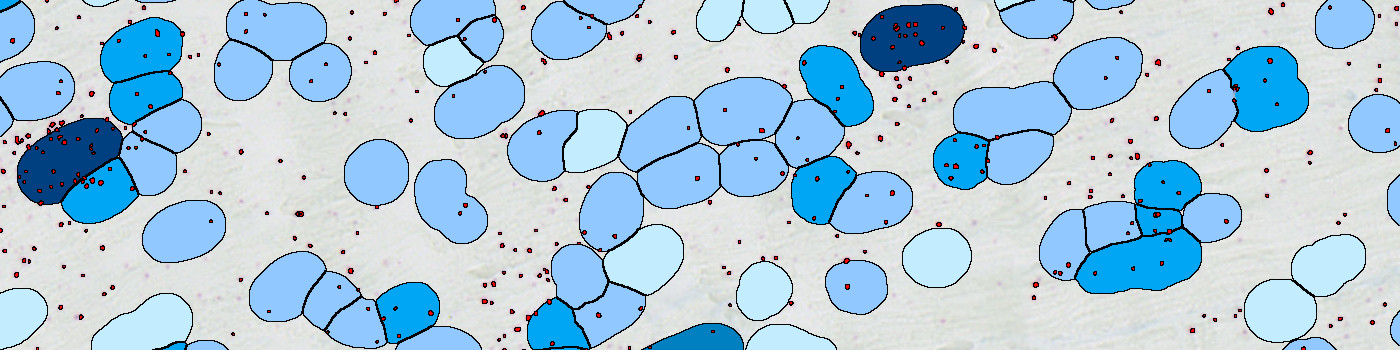

Classification of cells based on the number of probes – 0, 1+ and 2+ shown (bright, mid and strong blue).

Figure 4

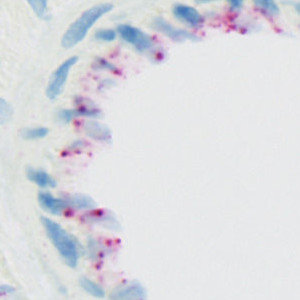

Field-of-view from the left ventricle of a rat heart stained for PECAM1.

Figure 5

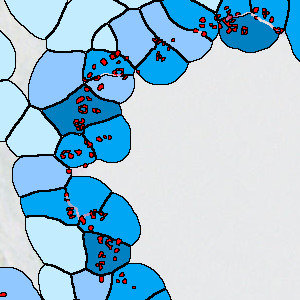

Classification of cells based on the number of probes – 0, 1+, 2+ and 3+ shown (bright, mid, strong, and dark blue).

Details

Quantitative Output variables

The output variables obtained from this protocol include:

Probes (#): Number of probes
Probes area (µm²): Area of probes
Tissue area (µm²): Area of outlined tissue
Cells 0 (#): Number of cells with 0 probes
Cells 1+ (#): Number of cells with 1-3 probes
Cells 2+ (#): Number of cells with 4-9 probes
Cells 3+ (#): Number of cells with 10-14 probes
Cells 4+ (#): Number of cells with more than 15 probes
Composite Score: 1x (% 1+ cells) + 2x (% 2+ cells) + 3x (% 3+ cells) + 4x (% 4+ cells).

Workflow

Step 1: Manually outline ROIs.

Step 2: Load and run the APP for quantification of probes and cells.

Methods

The protocol works within a manually outlined region of interest (ROI). Initially, probes and nuclei are detected. Probes are identified using a polynomial blob filter and the haematoxylin color-deconvolution band is used for nuclei identification. The initial classification of nuclei and probes is managed with a postprocessing protocol to refine the detection of nuclei and probes and to simulate cytoplasm. Cytoplasm is simulated by extending nuclei a predefined diameter, or until another cell is encountered. Cells are classified as 0, 1+, 2+, 3+, or 4+ based on the number of probes covered.

Staining Protocol

There is no staining protocol available.

Keywords

RNAscope, heart, rat, composite score, digital pathology, image analysis, RNA, ISH, probe, ANGPT2, EGLN3, GLP1R, HIF1A, PECAM1, SLC2A1, dapB.

References

USERS
The APP was developed for Charles Pyke, Camilla Ingvorsen, and Jonas Ahnfelt-Rønne, Novo Nordisk A/S.

LITERATURE
1. Wang, F. et. al. RNAscope – A Novel in Situ RNA Analysis Platform for Formalin-Fixed Paraffin-Embedded Tissues, Journal of Molecular Diagnostics 2012, 14 (1), 22-29, DOI.
