Picrosirius Red, SADS

Developed for St. George’s University of London

Sudden arrhythmic death syndrome (SADS) is a sudden, unexpected death in apparently healthy, young people where the underlying cause cannot be identified, see [1].  Sudden deaths are commonly attributed to cardiac abnormalities. Myocardial fibrosis, which includes an excess amount of collagen in the myocardial tissue, is a structural abnormality that may represent underlying cardiomyopathy causing sudden deaths, see [2]. Picrosirius red (PSR) is a stain that is commonly used to visualize collagen, see [3]

This APP is used for quantifying the amount of collagen, myocardial tissue, and fatty tissue in slides. It is also capable of detecting vessels in order to exclude them from the subsequent analysis so that they do not contribute to the outputs.

RUO

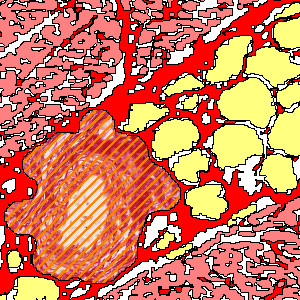

Figure 1

Figure 1

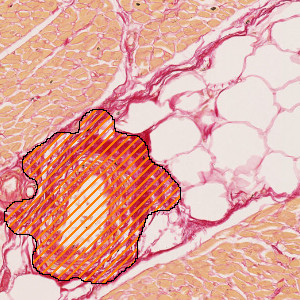

Figure 2

Figure 2

Figure 3

Figure 3

Details

Quantitative Output variables

The output variables obtained from this protocol are:

  • Area of Collagen [μm2]
  • Area of Myocardial Tissue [μm2]
  • Area of Fatty Tissue [μm2]
  • Total Tissue Area [μm2]
  • Percentage of Collagen
  • Percentage of Myocardial Tissue
  • Percentage of Fatty Tissue

Workflow

Step 1: Load and run the APP “01 Tissue Detection” for detection of the tissue in the slide

Step 2: Load and run the APP “02 Large Vessels” for identification of larger vessels

Step 3: Load and run the APP “03 Small Vessels” for identification of smaller vessels

Step 4: Load and run the APP “04 PSR” for quantification of collagen, myocardial tissue, and fatty tissue

Methods

The APP consists of three protocols. The first two protocols detect large and small vessels, respectively, in order to exclude them from the subsequent analysis. The vessels are identified based on detection of lumens using the blue color band and by detection of surrounding layers of red PSR staining found using the contrast between the red and the green color bands. A lumen candidate is defined as an actual lumen if it is partly or fully surrounded by PSR staining. The vessel is set to be the lumen with associated red PSR staining. A morphological measure for circularity is used to remove false positives. The third protocol detects cardiac muscle tissue, collagen and fat cells. Cardiac muscle tissue is found using the contrast between the green and the blue color bands, collagen is found using a custom defined input band named fast red, and fatty tissue is found using the green color band. Different value intervals of these bands define the different classes of tissue. For fatty tissue, morphological operations are used to distinguish them from air wholes.

Staining Protocol

There is no staining protocol available.

Keywords

Picrosirius Red, PSR, Sudden Arrhytmic Death Syndrome, SADS, Cardiac, Digital Pathology, Image Analysis
